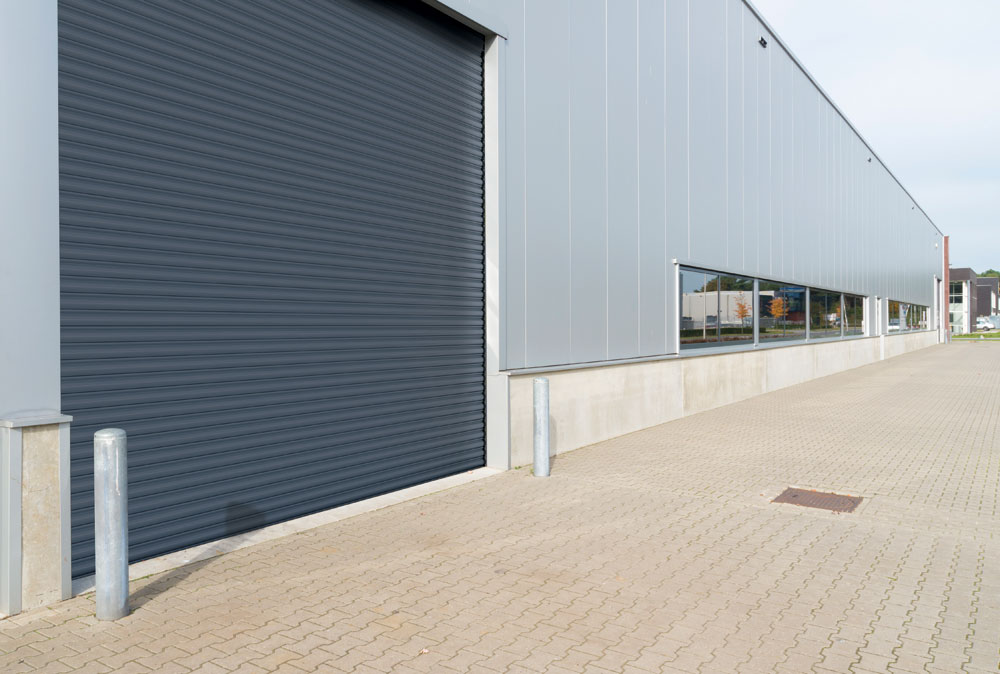

Industrial Roller Shutters
The purpose of our industrial doors, are to allow maximum access whilst providing maximum security. Our Roller Shutter Doors are a made to measure product with manual or electric operation.
The design and functionality of these roller shutters helps to create a safe working environment, improving traffic flow and reducing building energy loss whilst securing stored goods and assets.
APT industrial roller shutters provide access and security for internal and external applications such as warehouses, workshops, utility buildings, transport, airports and shopping centres.
GET YOUR FREE QUOTE
Just complete the form below
features
Made to measure for a tailor made solution
Manufactured in the UK
CE Marked
Approved LBCB products available
Electric Industrial Door Specification: Electric power operation 3 phase (415 Volt). Guthrie Douglas (GFA) Safedrive motor with emergency override chain facility and TS series control panel. Electrical requirements 16 amp 3 phase & neutral isolator commando socket. The shutter curtain is made of 75mm 20swg curved solid galvanised steel with interlocking slats and nylon end locks. A Galvanised steel T-rail is attached to the bottom of the curtain for added strength. The steel support angle flags are 75mm x 50mm x 3mm. Formed 6mm end plates are attached to the top of the guide angles. With the galvanised steel guide runner rails 65mm x 32mm x 3mm. The Barrel is constructed from high quality mild steel 5” diameter tube, 25”mm shaft, Nylon bearing blocks, complete with sealed for life bearings.
Chain Operated Door Specification: The chain operation rolling shutter is operated via a continuous manual hand chain with a spring assisted counterbalance support barrel. Complete with wall mounted lockable chain keep. The shutter curtain is made of 75mm 22swg curved solid galvanised steel with interlocking slats and nylon end locks. A Galvanised steel T-rail is attached to the bottom of the curtain for added strength. The steel support angle flags are 75mm x 50mm x 3mm. Formed end plates are attached to the top of the guide angles. With the galvanised steel guide runner rails 65mm x 32mm x 3mm. The Barrel is constructed from high quality mild steel tube with internal helical torsion springs, Mounted on shaft bearing blocks, incorporating a high-speed bearing at each end.
